Pattern: View Cache



A View Cache prevents unnecessary database accesses by caching Hierarchical Views and avoids lost update problems by preventing that inconsistent copies of Views are created.


You write a sequence of methods that uses the same ConcreteViews over and over again in a single user transaction.


How do you implement a cache for ConcreteViews?

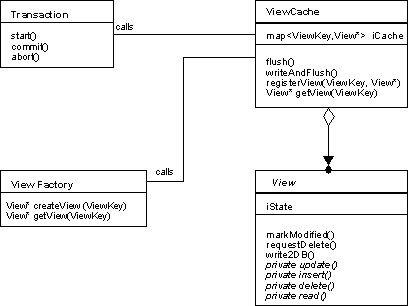

Create one cache of Views per database client process. Base it on a container that maps abstract database keys to pointers to Views.


The ViewCache offers usual cache methods that allow getting a View, registering a View in the cache and flushing the cache. You should separate any concerns of transaction handling from the ViewCache and leave them to the Transaction object. Aspects of how to write a View to the database should be placed in the ConcreteView objects. ConcreteViews are accessed via the abstract View protocol class.

Dynamic Behavior

To illustrate the behavior of the ViewCache we will have a deeper look into what happens when executing the following code:

       // get the appropriate data

       OrderInvoiceView * pInvoice =
             (OrderInvoiceView *) ViewFactory::getView( anOrder );

The code is taken from Listing 2 above. Let’s presume the OrderInvoiceView identified by the ViewKey anOrder has not yet been loaded. The ViewFactory will first try to ask the ViewCache for the View. As the ViewCache does not hold the required View, the ViewFactory will create a new View and have it loaded with data from the database that match the given ViewKey. The ViewFactory will then register the freshly loaded OrderInvoiceView with the ViewCache and return it.



The implementation of the ViewCache may be based on some Map container class.

Class ViewCache {


       static void flush ( void );

       static void writeAndFlush ( void );

       static void registerView ( ViewKey aKey, View *pView );

       static View *getView ( ViewKey aKey );


       static Cmap<CString,LPCSTR,View *,View *> iCache;


It would be even more elegant to define a cache class template, instantiate that for Views and implement it as a singleton. The header given is sufficient to demonstrate the cache’s idea.


Some host architectures use a ViewCache called Session Memory. A Session Memory may be streamed to an external data store (like a database blob) to survive the end of a session (process) and to offer transactions that may last for 30 days or more.

A Session Memory may also be used to store more sorts of data than just the database related ConcreteViews. A Session Memory is also often used for dialog data as well as other data that are needed for a process step in a workflow system.

VAA [VAA95] and also LBS2000 use a Session Memory.

Related Patterns

Brown and Whitenack describe a Cache Management Pattern [Bro+96] in less detail.

Pointers returned by the getView() method can be made safer using Smart Pointers [Mey96] or the Counted Pointers Idiom [Cop92]

Known Uses

The View Cache concept stems from Object Oriented Access layers. It may be found in various such access layers as the Champs, the EASY or the Hypo [Kel+96a] project at sd&m.

Host based architectures that need to offer long transactions for workflow processing also use the pattern. VAA calls it a Session Memory [VAA95]. The LBS2000 project also uses the pattern.
